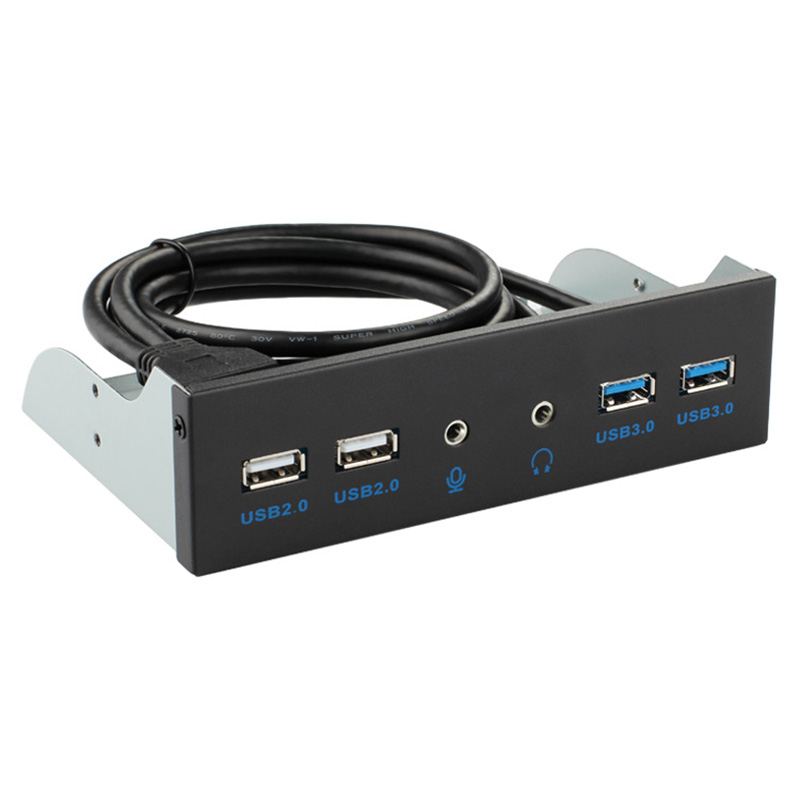

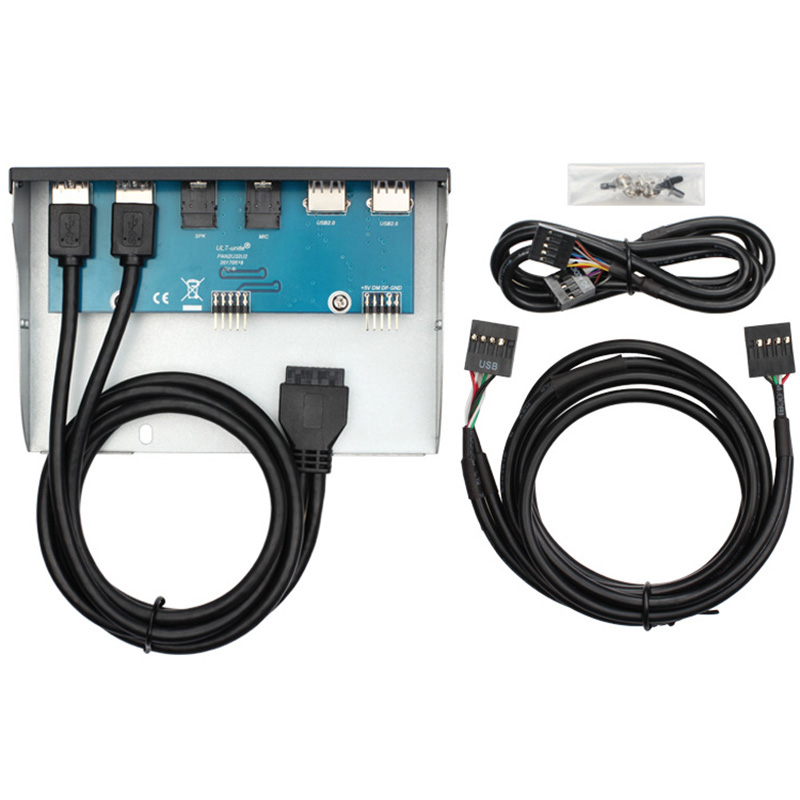

1. Product name:USB3.0 optical drive bit panel
2. Material: galvanized sheet
3. Weight: 354g
4. Color: black
5. Model: 4071-3015
6. Interface: 3.0*2+2.0*2+HD Audio
7. Wire: 24+28AWG OD: 5.5mm, wire length 0.8m
8. Bracket: 0.6mm thick galvanized sheet
9. Product features:
1) It is used for desktop computer host to expand the front I/O interface by using the idle optical drive position, which is convenient for the plug-in connection of peripheral USB and audio equipment, and the chassis DIY upgrades high-speed transmission.
2) Develop strictly in accordance with the size of the optical drive interface, the screw hole position and diameter are in line with industry standards; the simplified structure design takes up less space in the chassis
3) The USB3.0 high-speed cable conductor is made of tin-plated copper, and the stability of data transmission is improved through 3-layer shielding; the audio interface adopts the HD Audio solution to experience high-fidelity audio, with large transmission bandwidth, high playback accuracy, and stronger anti-interference
4) Reasonably design the layout of the panel connection C to ensure that each device can be inserted normally; the lightweight galvanized steel plate has a longer service life against oxidation and corrosion, and the sandblasting panel is more coordinated with the chassis as a whole
