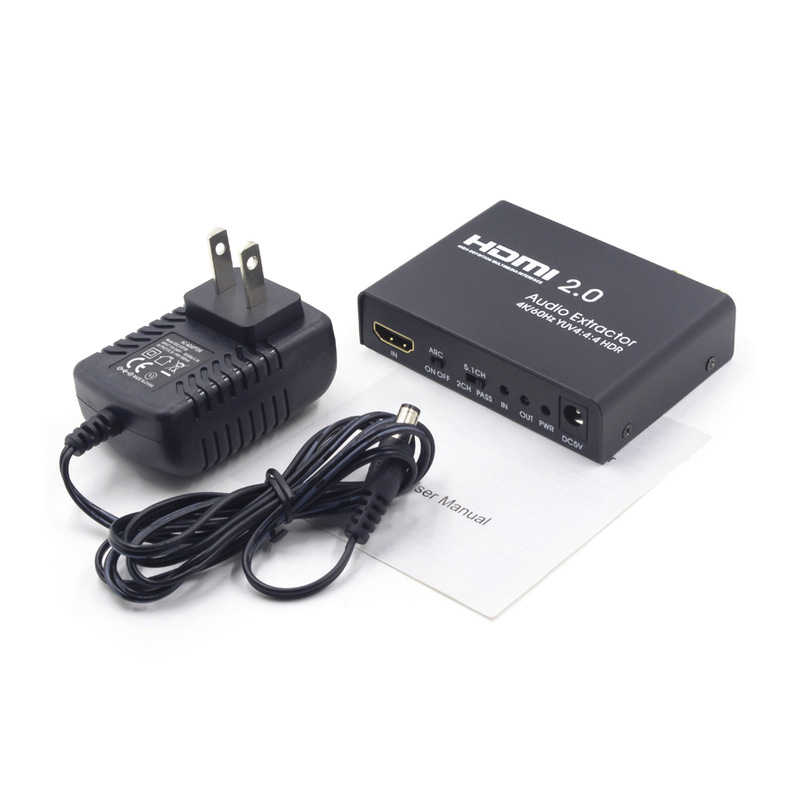

1. Product name: HDMI 2.0 4K audio splitter
2. Material: metal
3. Weight: 127g
4. Color: black
5. Size: 8.5*6.1*2cm
6. HDMI input and output resolution: up to 4K/60fs
7. HDMI supports the highest video color format: 2160p, 10/12 bits, 24/25/30Hz, 2160p, 10/12 bits, 50/60Hz
8. HDMI supports audio format: DTS-HD/Dolby-TrueHD/LPCM7.1/ DTS/Dolby-AC3/DSD
9. SPDIF digital audio format: Dolby Digital (AC3)/DTS/LPCM
10. HDMI maximum transmission bandwidth: 600MHz
11. HDMI maximum transmission speed: 18 Gbps
12. Input and output TMDS signal: 0.5~1.5Vp-p(TTL)
13. Input and output DDC signal: 5Vp-p (TTL)
14. DAC sampling frequency: 32～192 KHz
15.DAC bit rate: 16~24 Bit
16. RCA analog output (1KHz@0dB): 1V RMS
17. Signal-to-noise ratio @0dB (CC1R/ARM): ≥90dB
18. Distortion: ≤0.1%
19. Frequency response: 20HZ~20KHz
20. HDMI input cable length: ≤3m AWG26 HDMI standard cable
21. HDMI output cable length: ≤3m AWG26 HDMI standard cable
22. Maximum working current: 400mA
23. Power adapter specifications: AC 100V-240V 50/60HZ, DC 5V/1A
24. Working temperature: -10~+55℃
25. Storage temperature: -20~+60℃
26. Working humidity: 10~90%RH (non-condensing)
27. Storage humidity: 5~95%RH (non-condensing)
28. Product features:
1) Without occupying the HDMI high-definition output interface of the signal source device, the audio signal can be separated synchronously, supporting 1 SPDIF optical digital audio output interface and 1 L/R stereo analog audio output interface
2) The panel design LED indicator light clearly indicates the working status of the product
3) Adopt 24bit/192KHz DAC chip to ensure high quality sound quality
4) No signal loss, simple installation
