Reference number explanation:
* Video import signal: 5Volts p-p (TTL)
* Maximum signal 联 范 围 arriving 1920×1200, 1080p
* Video Bandwidth: 154MHz / 144MHZ
* Import import export contact:
Import: DisplayPort head 20pin;

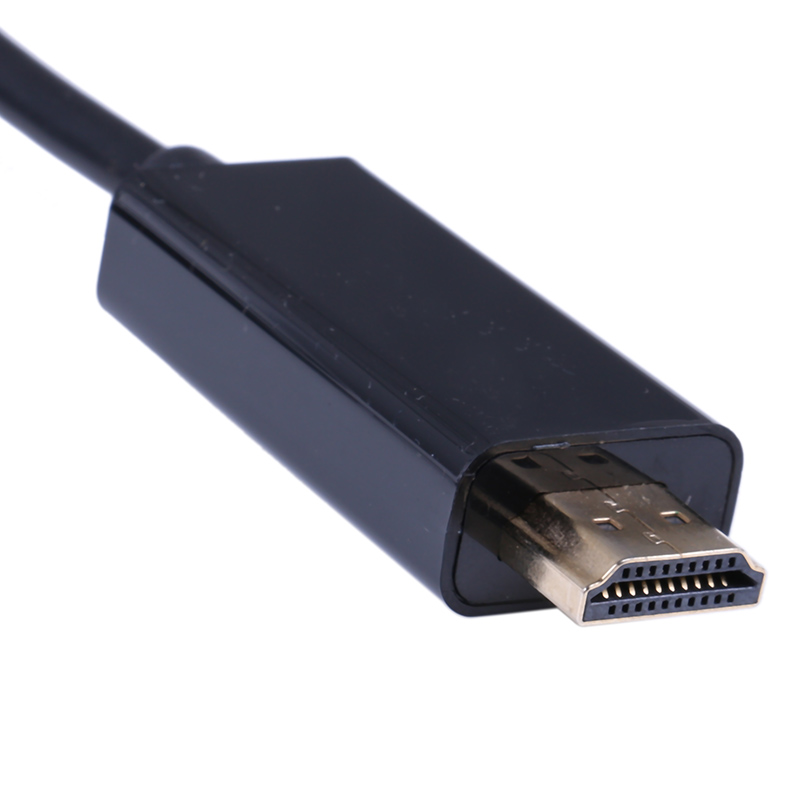

RGB video export: HDMI, DVI, VGA 15PIN mother’s head;
* RoHS directive;
Support rate: 800 * 600,1024 * 768,1280 * 720,1280 * 1024,1920 * 1080
Product characteristics:
◇ Support DisplayPort v1.1 ；
◇ Support DisplayPort signal arrival HDMII signal conversion;
◇ Support 20pin-like DisplayPort connection;
◇ Support high-end 10.8Gbps video
◇ Highest support QXGA (1920 * 1200) Distribution rate export;
◇ Supporting 1Mbps-like bi-directional Tsusuke road;
◇ Support single-way, single-way, four-line connection;
◇ Support hot swap.
◇ Internal conversion core piece, unnecessary external contact source
◇ DisplayPort standard design, chain design for end mouth, signal transmission
Appropriately owned DisplayPort port-like computer, DV, flat plate, MP4, etc.
